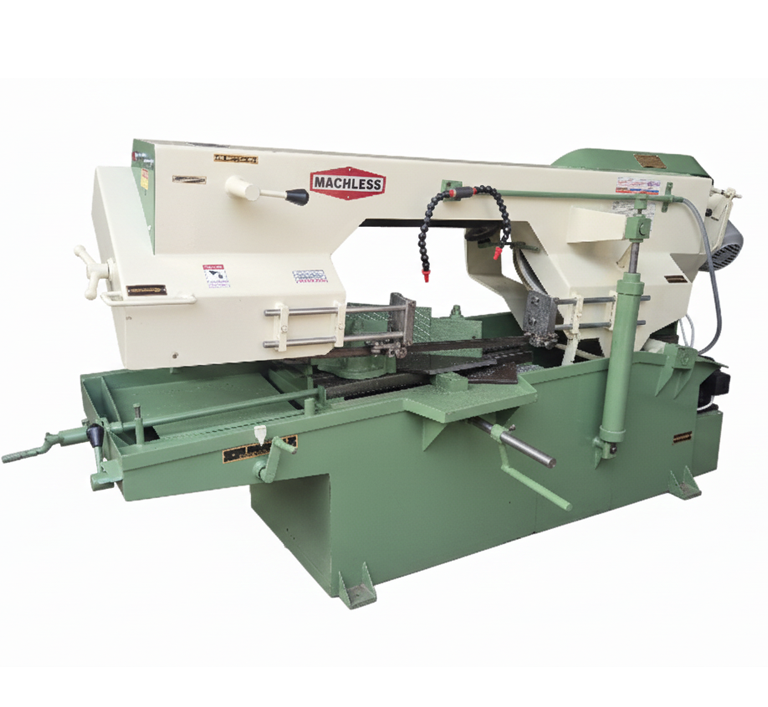

BANDSAW MACHINES – Matchless Industries

Technical Specification

Endless circular 0.9mm blade so it has less material wastage & blade cost is cheaper.
Blade has circulating movement & moves in one direction only in one cycle time ,so the blade has continuous cutting and idle stroke & it always in contact with the material
Less power consumption due to Hi precision Gear Box dynamically balanced wheel.
Arm has swing type action for smoother & faster cutting of larger section.
Efficient self-centering vice for job clamping .
Separate Coolant Tank to avoid wastage of water and cutting oil & also for easy maintenance.
Chip Collection Tray to avoid maxing of water and chips.
Automatic shut off after completion of cutting .
Easy , Precise & Adjustable gravity feeding control makes optimum use of band saw blade and it can be rewelded many times to save cost .
Each & every part of machine is easily repairable & replaceable .

Model	MB-175	MB-200	MB-250	MB-300	MB-350	MB-400
Cap. of Round Bar (mm)	175	200	250	300	350	400
Cap. of Square Bar (mm)	150	150	200	250	300	350
Drive Motor (HP/RPM)	0.5/440	1/1440	2/1440	2/1000	2/1000	3/1000
Coolant Pump (HP/Volts)	0.10/440	0.10/440	0.10/440	0.10/440	0.10/440	0.10/440
Blade Speed (Mtr./Mnt.)	25/30/40	20/35/55/75	20/35/55/75	35/55/75	35/55/75	35/55/75
Bandsaw Blade (mm)	2515x20x0.9	3000x27x0.9	3300x27x0.9	3760x34x1.1	4100x34x1.1	4420x34x1.1
Guide Pulley Dia (mm)	340	410	425	496	496	550
Length (mm)	1500	1630	2000	2400	2550	2650
Width (mm)	570	580	600	830	830	830
Height (mm)	870	895	900	1050	1050	1200
Weight (approx.)	272 kg	322 kg	400 kg	561 kg	621 kg	700 kg
Weight with packing	380 kg	430 kg	500 kg	630 kg	750 kg	850 kg
